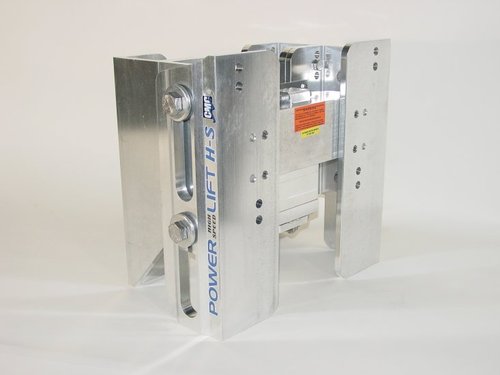

PL-65-HS Hydraulic Jack Plate 10 inch setback

Description

• High Speed unit, approx 8 seconds full travel
• Will operate at full load, full throttle
• Made of 6061-T6 extruded aluminium alloy
• Stainless steel fasteners for maximum strength and durability
• 10 inch setback from transom
• 5 inch vertical slide adjustment
• 3 inch vertical fixed adjustment using mounting holes
• Mounting hardware included
• Weighs 25.5 kg
• Rated up to 300HP V6 outboards
• Price includes GST

Designed to fit standard B.I.A. bolt pattern, without drilling holes or making modifications in the boat or motor.

 FEATURES

• Made of 3/4 and 1/2 inch aluminium alloy  extrusions and fastened with stainless steel fasteners. Ideal for fresh or salt water use. No welds or castings to break.
• The dependable, self contained and water proof, hydraulic actuator has 2250 kg of thrust. More than any other transom jack.  No problem to lift even a V-6 motor at full throttle. The  actuator is mounted inside the structure of the Power-Lift, yet it is fully accessible without removing the engine.
• There are NO hoses inside your boat.
• NO pump and NO reservoir inside your boat.
• The hydraulic actuator is completely self-contained with its own fluid reservoir.  It contains a permanent magnet motor for more power and R.P.M., a no-leak seal and wiper seal that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.
• The patented side roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks.
• The roller assembly contains a stainless steel 3/4″ pin with aluminium-bronze alloy rollers.
• The roller is highly impact resistant, corrosive resistant, and has a high load carrying capacity.
• Most importantly, the outboard plates on our units are fully supported throughout the vertical travel of the unit.
• Have a look at other manufacturers units that are offered on the market, and you will soon see how stressed they could become when a 300HP outboard is being hammered through rough water.
• Over 160 Hydraulic Jack Plate units sold by us in Australia over the last few years, and no problems.
• The PL-65 is rated for V-6 motors and smaller and gives you 5″ of vertical travel with 1-1/2″ of adjustment on the motor bracket and 1-1/2″ of adjustment on the transom bracket.
• A TOTAL HEIGHT ADJUSTMENT OF UP TO OF 8″ IS POSSIBLE .
